Application instruction
- Used for moving between bed, wheel chair and batch room, save the nurse from vocational injury and ensure the safety of the patient.
Specification
- Base is 38.1x63.5mm flat tube, static powder coated surface.

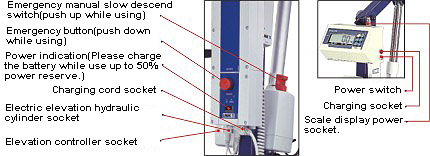

- Uses Danish LINAK electrical elevation cylinder, stable quality and reliable and safety.
- Employs latest DC charging type electrical cylinder(Jumbo type), with button to switch over to manual mode in case of emergency and lower the patient.
- Manual control smart type electrical elevation design convenience to nurse in application.
- "U" shape base is adjustable in two stage, width can be adjust to 100cm(±5%) from 63.5cm.
- Good for 40 cycles of elevation after full charge.
- Max. pay load is 210kg(±10kg).
- The display of the scale is in digital LCD panel, with backlit.
- Automatic 30 seconds shut off power conservation device. Battery of the scale last for 150 hours with no restriction to places.
- Function of deduction of full weight.
- With automatic and manual temporary reserved function.
- The scale possesses swing monitoring function, the weighing result will not be affected by patient swing.
- The scale is two purposes usable for 110V wall socket and battery power.
- Front wheels are 3" caster, rear wheel are 4" braking wheel.
- Never used while charging.
- Please charge the battery while the battery display 50% power reserve.
- Charging time is 4~12 hours, automatic cut off while fully charged.
Standard accessories
- With one APC-109SL stretch bag.
- Two 12V batteries, capacity is 2.7AH.
- With one battery charger.
- One wired elevation controller.
